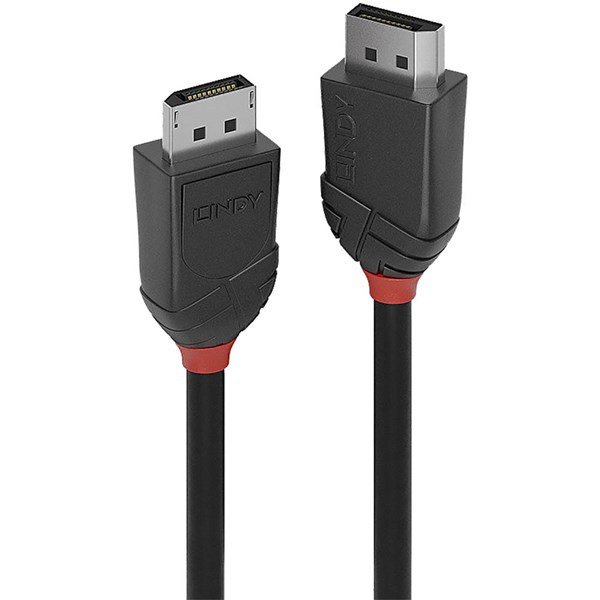

LINDY 36490 BLACK LINE DISPLAYPORT 1.2 CABLE 500MM BLACK

Code: 7104703 Brand: LINDY Colour: BLACK Size: 500mm

From the Lines cable connectivity concept developed by Lindy, Black Line DisplayPort cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use
Black Line DisplayPort cables feature triple shielded construction with 30AWG copper conductors for performance and corrosion resistance. Nickel connectors and 24K gold plated contacts maintain signal integrity and reliability
Black Line DisplayPort cables are available in lengths: 0.5m, 1m, 1.5m, 2m and 3m
Entry level DisplayPort cable for home and small office applications
Supports UHD resolutions up to 4096 x 2160 at 60Hz 4:4:4 10bit
Robust PVC housing, nickel connectors, 24K gold plated contacts
Triple shielded cable, corrosion resistant copper 30AWG conductors
DisplayPort 1.2, 4K, 3D, 21.6Gbps
10 year warranty

$13.09

$14.40 Inc GST

EACH

Features

Connectors
Connector A: DisplayPort Male
Connector B: DisplayPort Male
Housing Material: ABS
Connector Plating: Nickel
Pin Construction: Phosphor Bronze
Pin Plating: 24K Gold 3um
Dimension: 20.7(w) x 42.6(d) x 13(h)mm
Cable Construction
Length: 0.5m
Standard: DisplayPort 1.2
Colour: Black
Type: Round
Jacket Diameter: 6mm
Jacket Material: PVC
Conductor Material: Copper
Conductor Gauge: 30AWG
Shielding: Copper Braid 80%
Supported Bandwidth: 21.6Gbps
Maximum Resolution: 4096 x 2160 at 60Hz 4:4:4 10bit
Nominal Attenuation: 300kHz - 825MHz - less than 5dB, 825MHz - 2.475GHz - less than 5dB, 2.475GHz - 4.125GHz - less than 12dB, 4.125GHz - 5.1GHz - less than 20dB
Minumum Band Radius: 48mm
Operating Temperature: -20 - 80 degree C (-4 - 176 degree F)
Storage Temperature: -25 - 85 degree C (-13 - 185 degree F)
Packaging Type: Polybag
Warranty: 10 years
Certificated: RoHS, REACH, UL
OEM: 36490
